G4HFQ Software - FTB7800 Details

FTB7800 - Details

Home Repeaters Download FAQ Order Links G2HCG articles FTBasicMMO FTBVR5K FTBVX3 FTBVX8 FTB1D FTB2D FTB60 FTB100D FTB177/277

FTB250 FTB270 FTB350  FTB1050 FTB1802/1807/1907 FTB1900/2900 FTB2070  FTB2800 FTB3100 FTB7800 FTB7900 FTB8800 FTB8900

FTB7800 is a memory management program for the FT-7800R/E FM transceiver.

You can view a web-based version of the Help file which includes installation instructions, and eHam.net reviews of FTB7800

See the Links page for sources of cables.

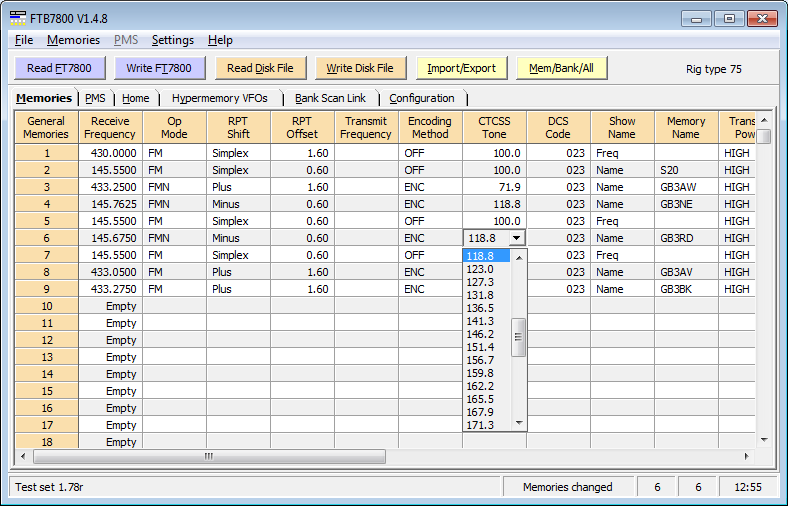

7800 memories screen.png (29200 bytes)

  • Backup/restore of the FT-7800 clone memory
  • Modify memories
  • Add/delete/move memories

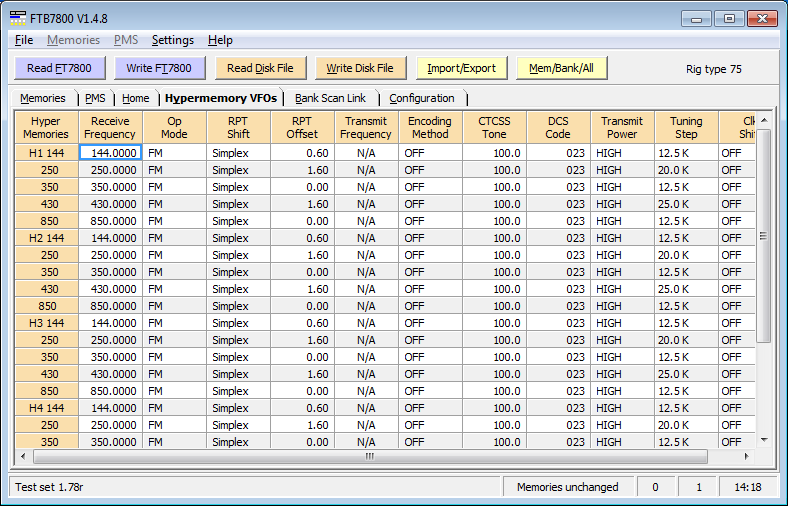

  • Manage memory banks7800 hyper memories.png (31561 bytes)
  • Cut/copy/paste memories
  • Sort memories by frequency or name
  • Analyse and report on duplicate frequencies
  • Edit Home memories
  • Edit PMS memories
  • Edit Hypermemories

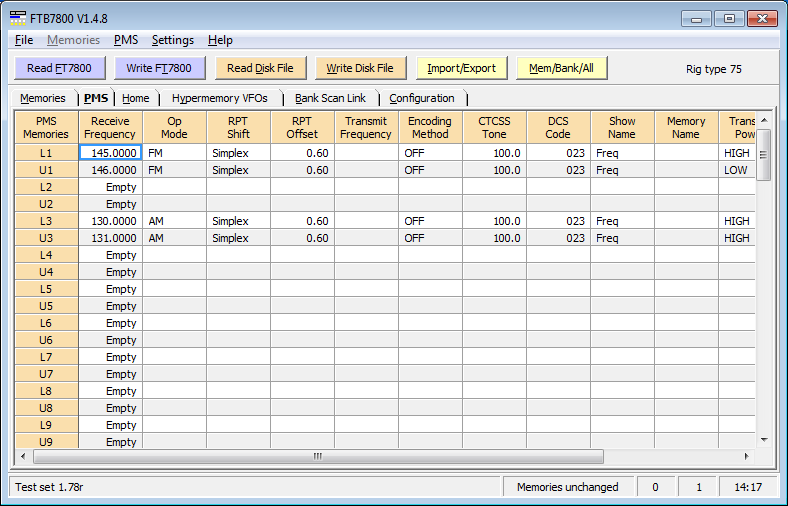

  • Change the values in the FT-7800's menus7800 PMS memories.png (23924 bytes)
  • Print memories

The Import/Export facility enables you to exchange memory information between the following radios by using .CSV format memory definition files. You will also need to use the appropriate FTBxxx software for the target radio.

  • FT-817, FT-847, FT-857, FT-897 (including ND and D models), FT-1802, FT-1807, FT-1900, FT-2800, FT-2900, FT-7800, FT-7900, FT-8800, FT-8900, FT1D, FT2D, FT-60, FT-250, FT-270, FTM-100D, FTM-350, FTM-3200D, VR-5000, VX-3, VX-8, VX-110, VX-150, VX-120, VX-170, VX-177
  • VX-2, VX-5, VX-6, VX-7 - using the Commander range of software by Jim Mitchell, KC8UNJ

Memory definitions can also be imported from TravelPlus for Repeaters using .TPE files and ADMS FT-7800 tab delimited .TAB files.

The program runs on a standard PC that has an available COM port for connection to the transceiver.  The COM port may be a conventional Serial port or one attached to a USB adapter.  It has been developed and tested on Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10. It will not run on Windows 8 RT version which does not support desktop applications. The minimum screen resolution is 800 x 600 but 1024 x 768 is recommended.
